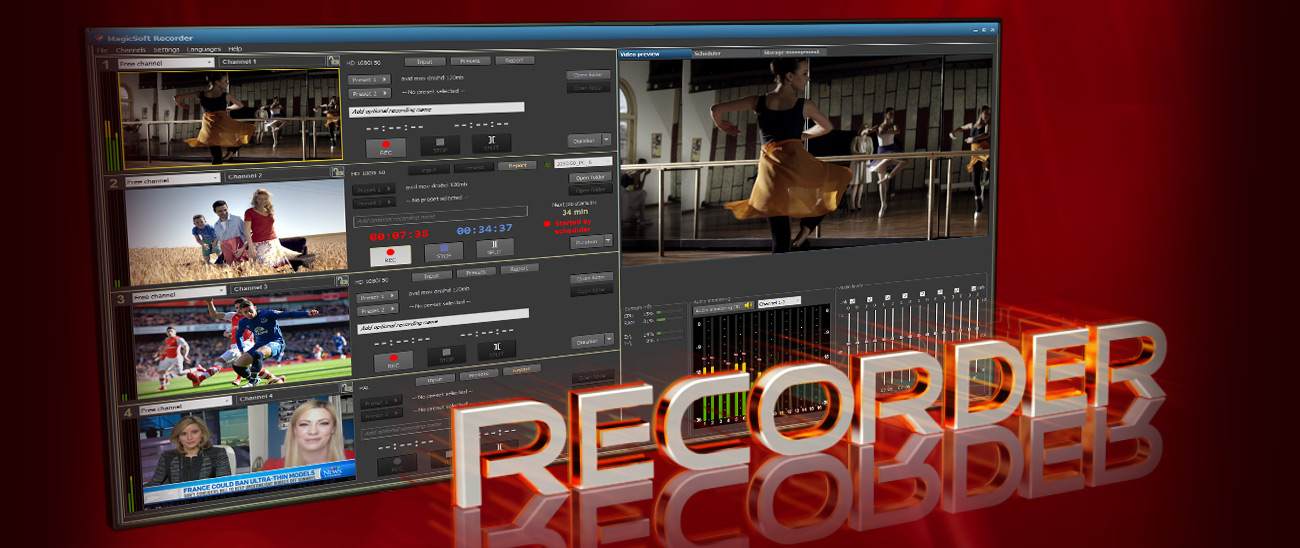

MagicSoft Recorder - for production and broadcast

MagicSoft Recorder is an ingest application designed for the broadcast and post-production markets.
The supported operating systems are Windows 7 / 8 / 8.1 / 10 / 11 and Windows Server 2012 / 2016 ( 64-bit versions only ).
It is particularly useful for multicam ingest and conformance recording because it supports up to 8 video inputs and each input supports 2 simultaneous recordings.

The supported video modes are :
   4K UHD       23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
   HD1080p      23.98 / 24 / 25 / 29.97 /30 / 50 /59.94 /60
   HD1080i       50 / 59.94
   HD720p        50 / 59.94
   SD                PAL / NTSC

The program supports inputs from AJA, DeckLink, Intensity cards and NDI
For cards, the input can be set either analog or digital (depending on the card)

MagicSoft Recorder Viewer application adds the possibility to preview the recorded files and has the capability to output to a Decklink or Intensity card.

Related to the video, the viewer allows you to :
- set and play between "Mark In" and "Mark Out" points
- preview each frame
- change the type of interlacing and swap fields

Related to the audio, the viewer allows you to :
- monitor each audio track
- route audio for up to 16 channels

MagicSoft Recorder has modules for :
       - "TimeCode and NLE support" that adds support for timecode (LTC / RP 188 / RS422), inserting marks and saving projects for Final Cut Pro/Edius/Premiere/Vegas
       - "Web Browser Remote" that adds support for monitoring and managing the channels by using a web browser from Windows/MacOSX/iOS/Android
       - "Transcoder" that allows you convert and record any input resolution into the desired video format ( ex : if you have NTSC input you can transcode it into PAL ).
       - "Closed caption" for capturing CC into media file (with H264 codec) and as well into separate .scc, .srt and .webvtt files.

The list of the supported video codecs and containers:

          - AVC Intra 50 and AVC Intra 100 .mxf
          - H264 8 bit .mp4 / .mov / .avi / .mkv and transport stream
          - H264 10 bit .mp4 / .mov / .avi / .mkv and transport stream
          - HEVC 8 bit .mp4 / .mov / .avi / .mkv and transport stream
          - HEVC 10 bit .mp4 / .mov / .avi / .mkv and transport stream

          - H264 8 bit using nVidia .mp4 / .mov / .avi / .mkv and transport stream
          - HEVC 8 bit using nVidia .mp4 / .mov / .avi /.mkv and transport stream
          - HEVC10 bit using nVidia .mp4 / .mov / .avi /.mkv and transport stream

          - H264 8 bit using AMD gpu .mp4 / .mov / .avi / .mkv and transport stream
          - HEVC 8 bit using AMD gpu .mp4 / .mov / .avi /.mkv and transport stream

          - XdCAM .mov and mxf
          - ProRes .mov

          - DNxHD 8 bit .mov and .mxf
          - DNxHD 10 bit .mov and .mxf
          - DNxHR .mov and .mxf

          - Mpeg2 program stream and transport stream
          - DV .avi /.mov /.mxf and rawDV
          - DVCPRO .avi and .mov
          - Uncompressed YUV 8 bit .avi and.mov
          - Uncompressed YUV 10bit .avi and.mov

MagicSoft Recorder video tutorials

Installing and requirements

Working with a recording channel

Creating and managing the presets

In-depth setting and operating a channel

The advanced settings of the MagicSoft Recorder

The scheduler

Storage management

System info and audio controls

Linking and sending commands to videohubs

MagicSoft Recorder can generate proxy resolutions for all video modes.
Up-converted 1080i files can be generated when the input is set to SD (either 4/3 or 16 /9).
Down-converted files can be produced as follow :
         - 1080i modes can produce down-converted PAL or NTSC
         - 1080p (50 and 59.94) modes can produce down-converted 720p
         - 4K UHD modes can produce down-converted 1080p
         - 4K UHD (50 and 59.94) modes can also produce down-converted 720p

MagicSoft Recorder has several features that add value to the software :
       - integrated scheduler
       - support for managing BlackMagic Design Videohub switcher over the network.
       - storage management for each assigned folder for recording

Features added by MagicSoft Recorder ver 4 :
       - support for NDI inputs (both YUV and RGBA modes are supported)
       - possibility to set a workflow for capturing on 8 bit or 10 bit for the incoming video
       - a lower CPU and RAM bandwidth consumption are archived for an 8 bit capturing workflow
       - using an intermediary storage buffer to overcome the storage problems encountered when using an over-the-network storage
       - added indicators into the user interface for the level of input buffer and storage buffer

By default, Magicsoft Recorder is able to resume automatically a recording operation in cases like :
       - lost input signal
       - computer restart
       - video mode changed (if the channel is set on "Auto-detect" mode)
The software contains a watch-dog application that ensures the functionality of the MagicSoft Recorder and sends the status and alerts by SMTP email.
MagicSoft Recorder works for all video modes by capturing the input video as YUV 4:2:2 10 bit and it can process up to 16 audio channels (32 bit 48KHz) depending on capabilities on the used frame-buffer. The files can be stored locally or over the network shared locations.

Supported inputs (depending on the capability of the used cards) :
          - SDI with audio embeded
          - SDI with audio AES
          - YUV with analog audio
          - Composite with analog audio
          - HDMI

The recommended configurations are based on Intel motherboards with socket 1151 / 1150 / 1155 / 1156 / 2011

The list of compatible hardware is open. The hardware vendors update their systems on a regular basis and it is difficult to evaluate every new system that comes to market.
The most important thing to consider is that the video frame-buffer must be compatible with the motherboard and the rest of your system. Our software will work for sure if the systems are configured correctly.

The supported operating systems are : Windows 7 / 8 / 8.1 / 10 / 11 and Windows Server 2012 / 2016 ( 64-bit version only ).

Multiple 4K channels ( 50 / 59.94 fps) UHD
Type	Observations	Processor	RAM Memory	Capturing card type
AMD EPYC 7452 CPU encoding	A video card must be added (ex : nVidia 750 or newer) The setup works for 8 ch 4k@59.94 H264	32 core processor	64 GB (eight channel DDR4 ECC)	Decklink 8K Pro Decklink Extreme 4K Decklink 4K Pro
Intel Xeon Gold socket 3647 CPU encoding	A video card must be added (ex : nVidia 750 or newer) The setup works for 3 ch 4k@59.94 H264	12 - 16 core processor	48 GB (six channel )	Decklink 8K Pro Decklink Extreme 4K Decklink 4K Pro
Intel i9 socket 2066 CPU encoding	A video card must be added (ex : nVidia 750 or newer) The setup works for 3 ch 4k@59.94 H264	12 core processor (7920x or better)	32 GB (quad channel )	Decklink 4K Pro Decklink Extreme 4K Decklink 4K Pro
AMD 7700x CPU encoding	The video card of the CPU can be used The setup works for 3 ch 4k@59.94 H264	8 core	32 GB (dual channels DDR 5)	Decklink 4K Pro Decklink Extreme 4K Decklink 4K Pro

4K ( 50 / 59.94 fps) UHD / 8 channels HD
Type	Observations	Processor	RAM Memory	Capturing card type
AMD 7700x CPU encoding	The video card of the CPU can be used The setup works for 3 ch 4k@59.94 H264	8 core	32 GB (dual channels DDR 5)	DeckLink / Intensity / Decklink Duo2 - 4 inputs Decklink Quad2 - 8 inputs
Socket AM4 chipset x370 or newer (up to for 8 channels H264 with real-time preset on 8 bit)	A video card must be added (ex : nVidia 750 or newer) Use a motherboard with chipset x370 or newer	AMD Ryzen 1800x / 1700x or newer	4 X 8 GB	DeckLink / Intensity / AJA Decklink Duo2 - 4 inputs Decklink Quad2 - 8 inputs
Intel Dual Xeon platform socket 2011 CPU encoding	A video card must be added (ex : nVidia 750 or newer)	2 x 6 core Xeon (3 Ghz or more)	32 GB (quad channel for each processor)	DeckLink / Intensity /AJA
Socket 2011 chipset x79 / x99 (with nVidia video card as encoding accelerator)	nVidia GTX 760 / 950 / 1050 (for single channel) or nVidia Quadro K2000 / K2200 / M2000 / P2000 (for multichannel)	Intel Core i7	4 X 8 GB	DeckLink / Intensity / AJA Decklink Duo2 - 4 inputs Decklink Quad2 - 8 inputs

Quad channel SD or dual channel HD
CPU Socket	MotherBoard	Processor	RAM Memory	Capturing card type
Socket AM4 chipset x370 or newer	A video card must be added (ex : nVidia 750 or newer) Use a motherboard with chipset x370 or newer	AMD Ryzen 1800x / 1700x or newer	4 X 4 GB	DeckLink / Intensity / AJA Decklink Duo2 - 4 inputs Decklink Quad2 - 8 inputs
Socket 1151 chipset Z170	Gigabyte GA-Z170XP-SLI Asus Z170 PRO	Intel Core i7 6700K / 6700	4 X 4 GB	DeckLink / Intensity / AJA
Socket 1150 / Z87	Asus Z87-K	Intel Core i7 4770k	4 X 4GB	Decklink / Intensity
Socket 2011 chipset x79 / x99 (with nVidia video card GTX 750 or newer)	Gigabyte Asus SuperMicro	Intel Core i7	4 X 4 GB	Decklink / Intensity / AJA
Socket 1155 / Z77	Gigabyte Z77X-UP4-TH Asus SaberTooth Z77	Intel Core i7 3770	4 X 4GB	Decklink / Intensity
Socket 1155	Gigabyte GA-P67A-UD5-B3 GA-Z68X-UD7-B3 Z68MA-D2H-B3	Intel Core i5 2500	4 X 4GB	Decklink / Intensity

Dual channel SD
CPU Socket	MotherBoard	Processor	RAM Memory	Capturing card type
Socket AM4 chipset x370 or newer	A video card must be added (ex : nVidia 750 or newer) Use a motherboard with chipset x370 or newer	AMD Ryzen 5 or better	2 X 4 GB	DeckLink / Intensity / AJA Decklink Duo2 - 4 inputs Decklink Quad2 - 8 inputs
Socket 1155 / Z77	Gigabyte Z77X-UP4-TH Asus SaberTooth Z77	Intel Core i5 3570	2 X 4GB	Decklink / Intensity
Socket 1155	Gigabyte GA-P67A-UD3-B3 GA-P67A-UD5-B3	Intel Core i5 2500	2 X 4GB	Decklink / Intensity
Socket 1156	Gigabyte GA-P55-UD3 GA-P55-UD5 GA-P55-UD6	Intel Core i5 750	2 X 4 GB	Decklink / Intensity

HP turn-keys system : quad channel SD or dual channel HD
Type	Observations	Processor	RAM Memory	Capturing card type
Z 420 B2B95UT	A video card must be added (ex : nVidia 650)	Intel E5-1620	8 GB	DeckLink / Intensity (must be added)

HP turn-keys system : dual channel SD
Type	Observations	Processor	RAM Memory	Capturing card type
Z 220 CMT D8D21UT	The integrated video card can be used	Intel i5-3470	4 GB	DeckLink / Intensity (must be added)
